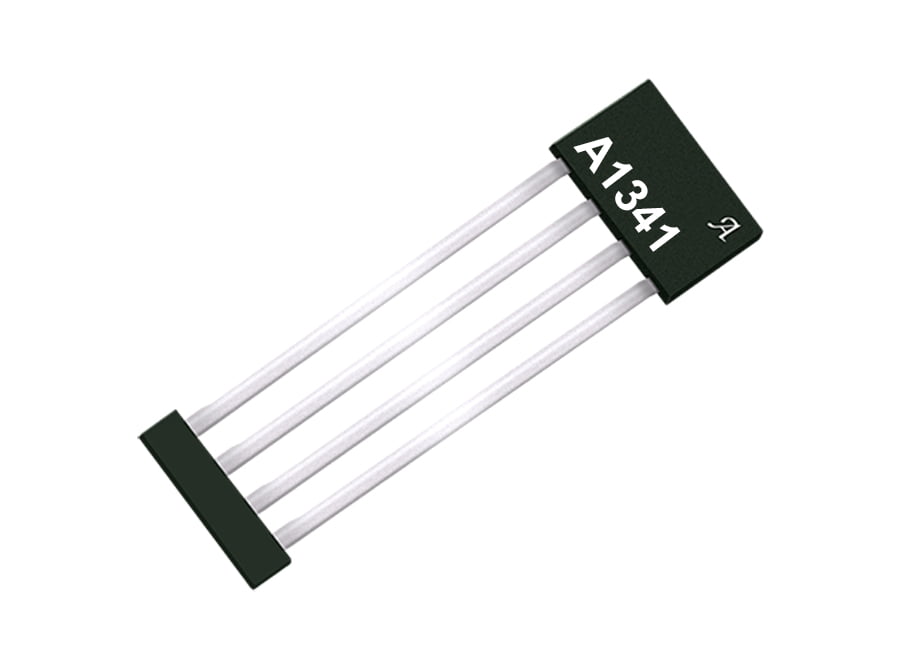

A1341
This device is no longer in production. The device should not be purchased for new design applications. Samples are no longer available. The A1341 is a high-precision, programmable Hall-effect linear sensor IC with configurable PWM or SENT output, 12-bit resolution, and up to 3kHz bandwidth. It features advanced temperature compensation, dynamic offset cancellation, 32-segment linearization, and on-board EEPROM for flexible customization.
Product Details
Product Details
Top Features
-
Advanced 32-segment output linearization functionality enables high output accuracy and linearity in the presence of non-linear input magnetic fields
-
Selectable digital SENT (Single Edge Nibble Transmission) or PWM (Pulse Width Modulation) output
-
SENT output is SAEJ2716 JAN2010 compliant with Allegro Proprietary Enhanced Programmable Features
-
Customer programmable sensitivity offset, bandwidth, output polarity, output clamps, 1st and 2nd order temperature compensation
-
Simultaneous programming of all parameters for accurate and efficient system optimization
-
Factory trimmed magnetic input range (coarse sensitivity) and signal offset
-
Sensitivity temperature coefficient and magnetic offset drift preset at Allegro, for maximum device accuracy without requiring customer temperature testing
-
Temperature-stable, mechanical stress immune, and extremely low noise device output via proprietary four-phase chopper stabilization and differential circuit design techniques
-
Diagnostics for open circuit, overvoltage, and undervoltage
-
Wide ambient temperature range: –40°C to 150°C
- Operates with 4.5 to 5.5 V supply voltage
- Allegro Sensor Bias LDO
