High Precision Linear Hall-Effect Sensor With an Open Drain Pulse Width Modulated Output
High Precision Linear Hall-Effect Sensor With an Open Drain Pulse Width Modulated Output
A1356

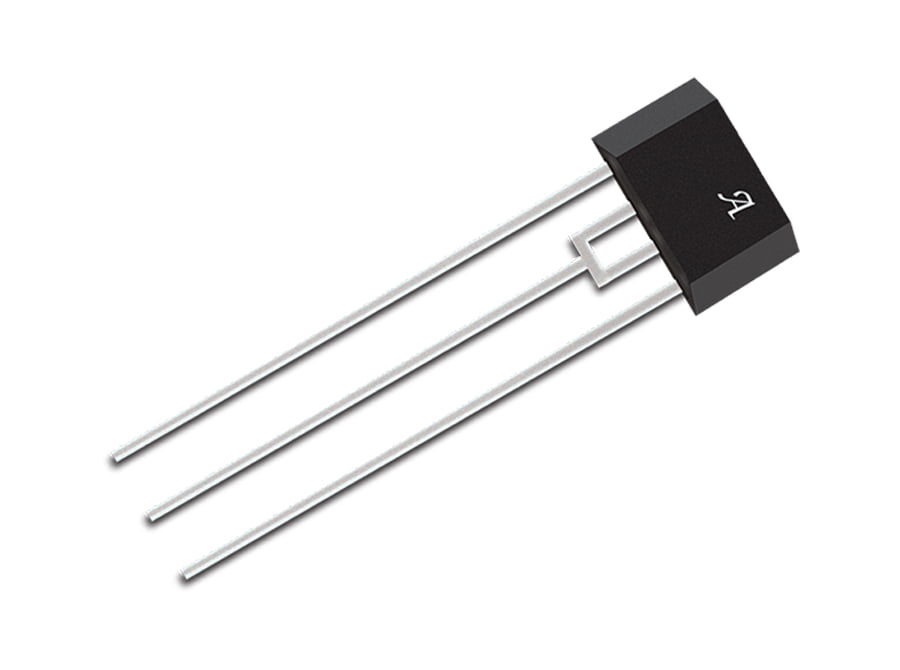

This device is no longer in production. The device should not be purchased for new design applications. Samples are no longer available. The A1356 is a high-precision, programmable open-drain Hall-effect linear sensor IC with a PWM output. It converts analog signals to digitally encoded PWM for superior noise immunity, featuring precision temperature compensation and high-frequency dynamic offset cancellation for accurate, fast signal processing.
Product Details
Product Details
Top Features
- Simultaneous programming of PWM carrier frequency, quiescent duty cycle, and sensitivity; for system optimization
- Factory programmed sensitivity temperature coefficient and quiescent duty cycle drift
- Programmability at end-of-line
- Pulse width modulated (PWM) output provides increased noise immunity compared to an analog output
- Precise recoverability after temperature cycling
- Output duty cycle clamps provide short circuit diagnostic capabilities
- Optional 50% duty cycle calibration test mode at device power up
- Wide ambient temperature range: –40°C to 150°C
- Resistant to mechanical stress
- Advanced chopper stabilization circuits and differential signal path design lead to very low output offset levels
- Proprietary on-chip filters provide high output resolution
- Wide power supply operating range: 4.5 to 18 V
