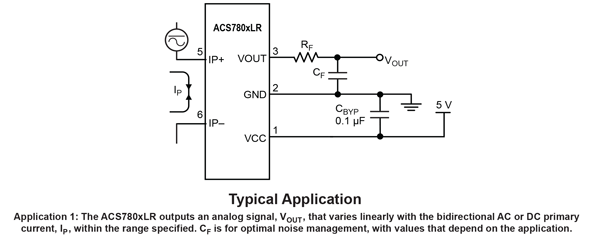

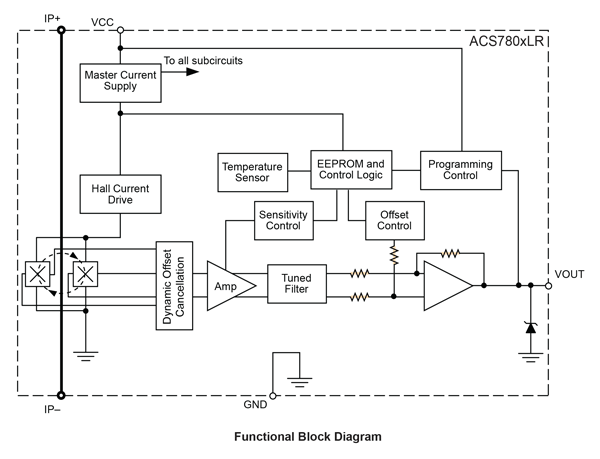

The ACS780 offers accurate and efficient current sensing for automotive applications, featuring a coreless design, 200µΩ conductor for low power loss, and integrated protection against common-mode field interference.

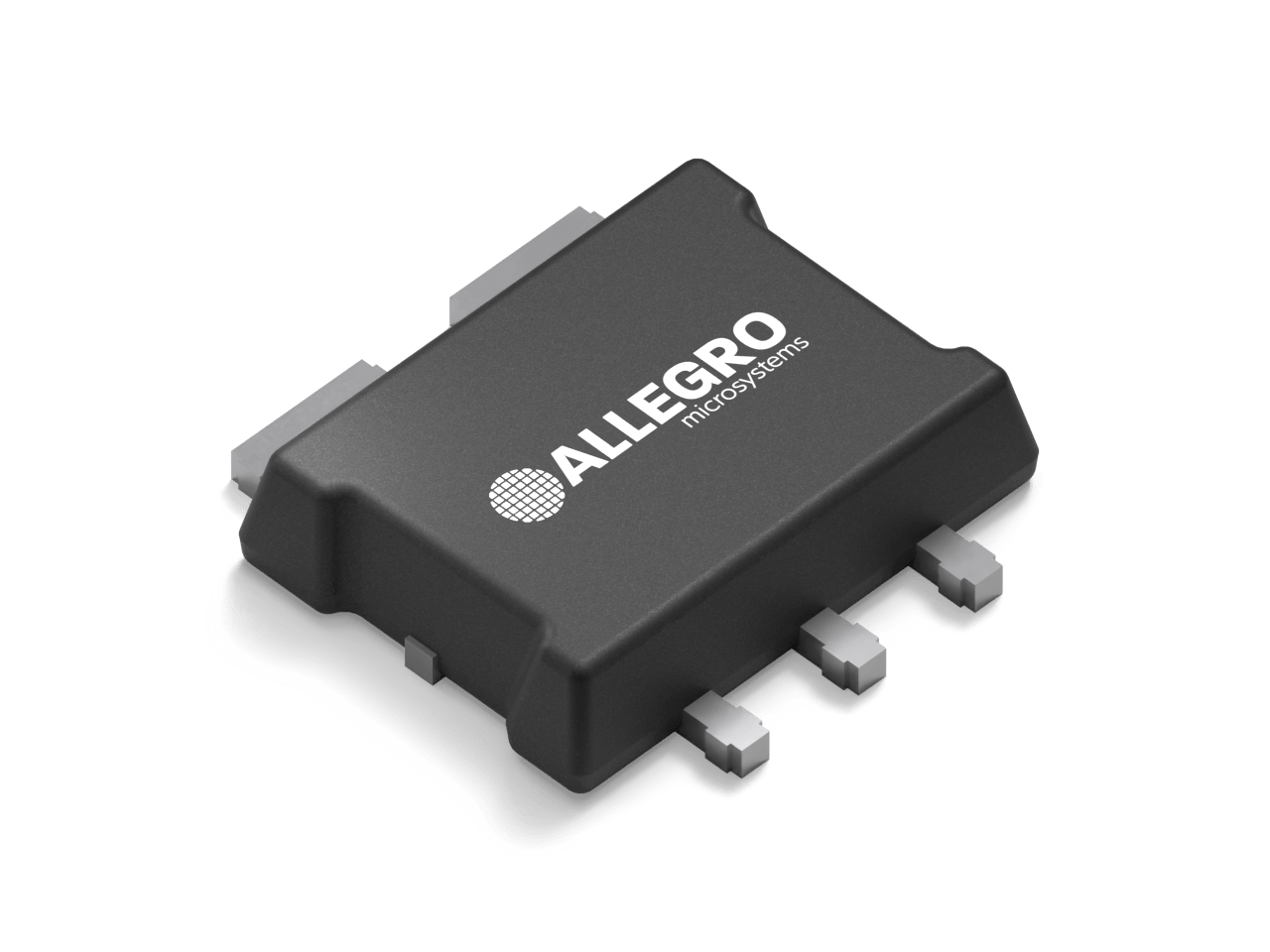

Allegro's family of fully integrated current sensor linear ICs in a core-less package designed to sense AC and DC currents up to 100 A. Allegro’s ACS780/ACS781 are provided in this new automotive-grade, low-profile (1.5 mm thick) sensor IC package that represents the highest current density of any Allegro current sensor IC package to date.
| Document Type | Document Name |
|---|---|
| Application Note | How to Analyze and Compare Allegro Current Sensor and ADC Error Components |
| Application Note | Techniques to Minimize Common-Mode Field Interference When Using Allegro Current Sensor ICs (ACS724 and ACS780) |
| Application Note | Glossary of Isolation-Related Terms for Integrated Current Sensors |
| Application Note | Secrets of Measuring Currents Above 50 Amps |
| Application Note | DC Current Capability and Fuse Characteristics of Current Sensor ICs with 50 to 200 A Measurement Capability |
| Application Note | DC and Transient Current Capability/Fuse Characteristics of Surface Mount Current Sensor ICs |
| FAQ | Current Sensors FAQ |
| Document Type | Document Name |
|---|---|
| Gerber File | ASEK780LR Gerber File |
| Simulation Tool | Current Sensor Error and Resolution |
| SPICE Model | ACS LTspice Library |
| Webpage | Software Portal |
