High-Precision Programmable Linear Hall-Effect Sensor IC with PWM Output

ATS344

ATS344 Product Image

The ATS344 provides highly accurate and customizable linear position sensing, featuring a two-wire PWM output, integrated EEPROM for flexible programming, and an integrated rare-earth pellet package for simplified design.

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings ATS344 ECAD Model Type Image
Download Datasheet
Navigate

Top Features

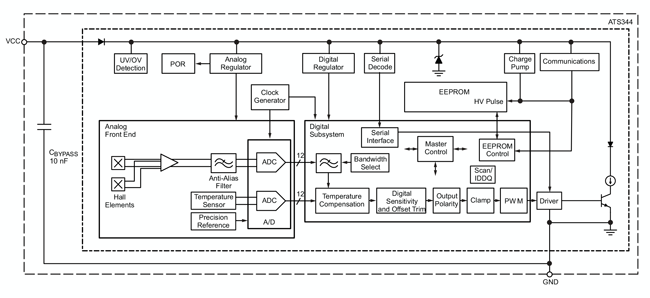

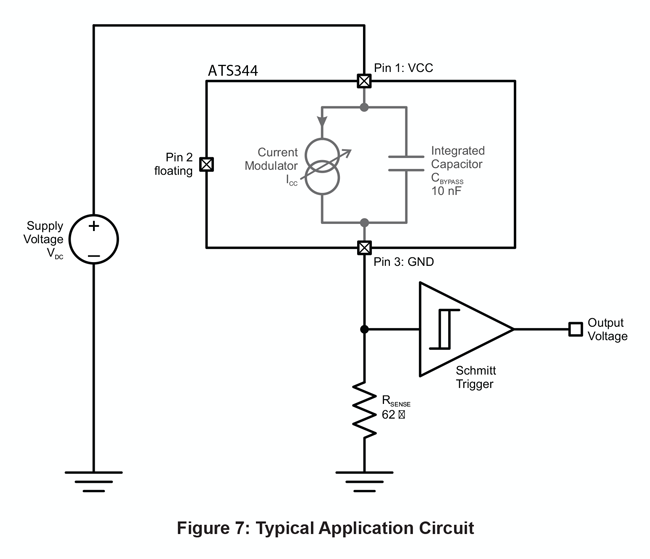

Typical Applications

Packaging

  • Magnetic sensor IC with integrated rare-earth pellet
  • Two-wire current mode PWM (pulse-width modulation) output
  • Customer-programmable position range selection and offset, bandwidth, output clamps, and temperature compensation
  • Sensitivity temperature coeff icient and offset drift preset at Allegro
  • Temperature-stable, mechanical stress immune, and low noise device output via proprietary active stress compensation and four-phase chopper stabilization design techniques
  • Wide ambient temperature range: –40°C to 150°C
  • Operates with 3.75 to 9.5 V supply voltage
  • Differential linear signal processing
  • AEC-Q100 qualified

The integrated back-bias magnet greatly simplifies packaging for the customer, requiring only a ferrous target to detect. The ATS344 is offered in a Pb free, 100% matte-tin lead-frame plated 3-pin SP package.

SP Package Documentation

× not found

Part Number Specifications and Availability

Documentation and Resources

Documentation

Tab 1

Filter Document Type:
All Types
All Types Application Note
Documents Found: 32
Document Type Document Name
Application Note
Application and Advantages of Allegro's ATS344LSP Magnetically Back-Biased Differential Linear Sensor IC
