FLAG出力を内蔵した高直線性かつ高分解能TMR電流センサ

CT220

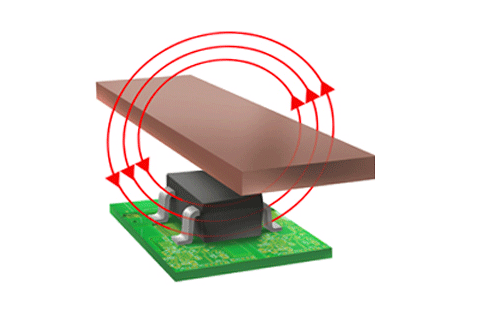

CT220は、小型フォームファクター、高直線性、高分解能、過電流検出用の内蔵FLAG出力により、高精度の非接触電流検出機能を提供します。

View Datasheet

Product Details

Top Features

AC or DC Contactless Current Sensing Range: Up to 1,000 A
Resolution of 5 mA
Inherently High Isolation
Magnetic Field (Current) Range:
- ±1.5 mT
- ±5.0 mT
- ±10.0 mT
- ±15.0 mT
Stable Performance over Temperature
Supply Current: ~1.2 mA
FLAG Pin to Indicate 90% and 10% of Full Field Range
- Active LOW Digital Output (Push-pull)
Supply Voltage: 2.7 V to 5.5 V
Operating Temperature Ranges:
- Industrial: -40°C to +85°C
- Extended Industrial: -40°C to +125°C

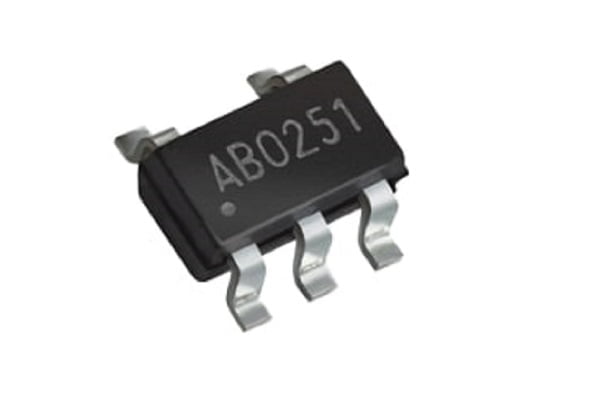

Package: 5-Lead SOT23

Target Application

Part Number Specifications and Availability

Allegro's XtremeSense™ TMR technology

Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
