リファレンスまたはフォルト出力対応のDC～5MHz高精度電流センサ

ACS37030-2

ACS37030/2電流センサは、ホール効果と誘導検出の両方を用いて、広周波数範囲 (DC～5MHz) で高精度の電流測定を実現します。ACS37030はリファレンス電圧出力を提供し、ACS37032は過電流検出用のフォルト出力を搭載しています。

View Datasheet

Product Details

Top Features

  • High bandwidth, 5 MHz analog output
  • ±2% sensitivity error across temperature
  • Fused-lead SOIC-6 package supports 840 VRMS basic isolation and 420 VRMS reinforced isolation
  • Non-ratiometric operation with VREF output for enhanced accuracy in noisy environments
  • 0.68 mΩ internal primary conductor resistance for better power efficiency
Target Application

Part Number Specifications and Availability

ACS37030/2 Product Overview

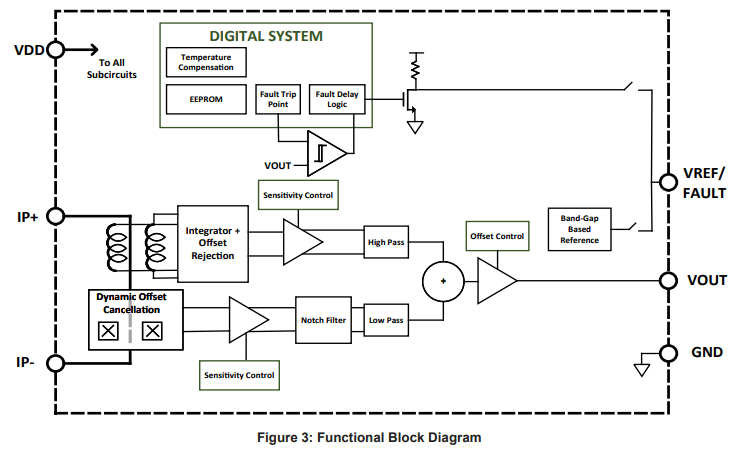

The ACS37030 and ACS37032 are fully integrated current sensor IC that senses current flowing through the primary conductor. There are two signal paths utilized, a Hall-effect element path to capture DC and low frequency current information, and an inductive coil path to capture high frequency current information.

ACS37030/2 Product Overview

The ACS37030 and ACS37032 are fully integrated current sensor IC that senses current flowing through the primary conductor. There are two signal paths utilized, a Hall-effect element path to capture DC and low frequency current information, and an inductive coil path to capture high frequency current information.
