ACS37041/42電流センサは、外部シャント抵抗を不要にすることで電流測定を簡素化し、低抵抗損失と差動検出による堅牢なパフォーマンスを備えたコンパクトな一体型ソリューションを提供します。ACS37041は最大100VRMSの機能的絶縁、ACS37042は最大285VRMSの基本絶縁に対応しています。
Product Details
Product Details
Top Features
- Self contained shuntless current sensing with no
external sense resistor required; single package solution - Low ohmic loss with >1mΩ conductor resistance on the

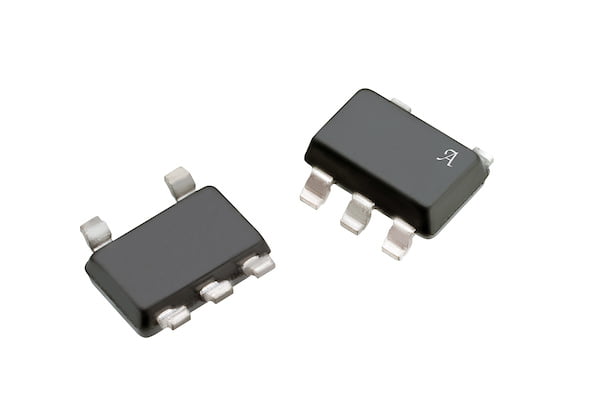

LH package - Small footprint, SOT23-W 5 pin LH package
- 125 kHz bandwidth
Part Number Specifications and Availability
ACS37041 Product Overview
Allegro MicroSystems' latest innovation in current sensing technology, the ACS37041, is a high-performance, fully integrated current sensor IC that offers exceptional accuracy and reliability for a wide range of applications. For more detail into what the ACS37041 can do, check out our product overview.
0:00
Discover Allegro's Advanced Magnetic Current Sensors!
Upgrade your designs with efficient, compact, and integrated solutions. Simplify your circuits and reduce component count with Allegro's innovative sensor technology.
Replace the Shunt
