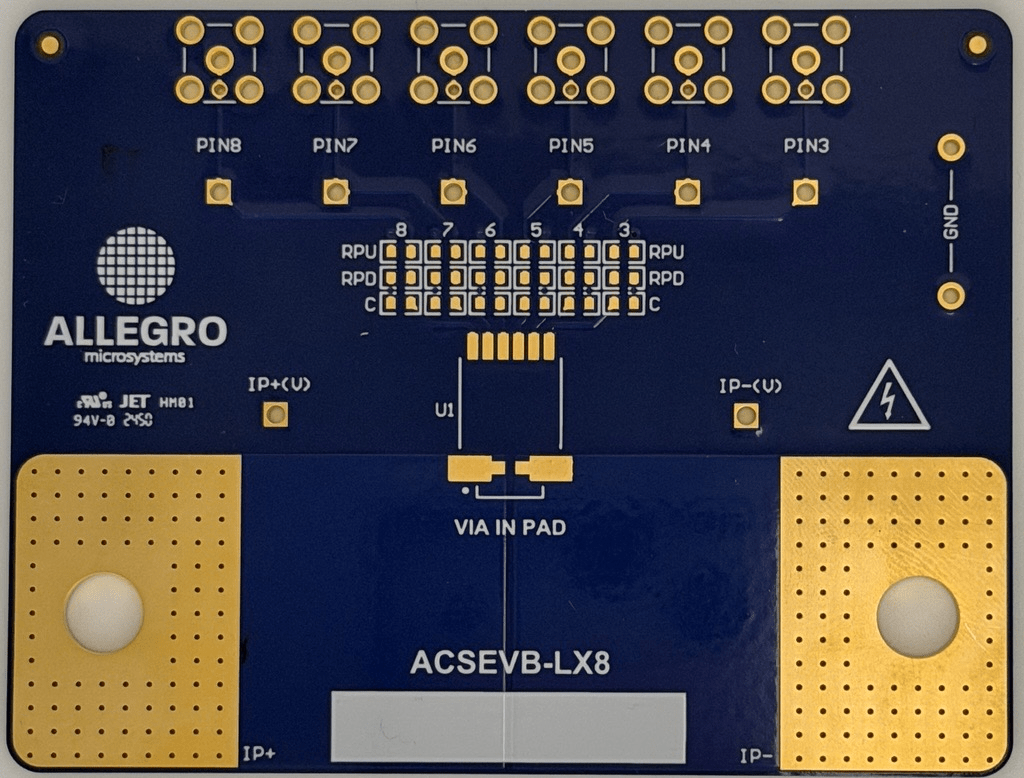

This bare evaluation board offers a method for evaluating Allegro current sensors in a lab environment. This LX package current sensor evaluation board is intended for use with any LX-8 package (8-pin flat PSOF custom package) Allegro Hall-based or TMR based current sensor.
Product Details
Product Details
Top Features
- • Enhanced thermal performance:
- 6-layer PCB with 2 oz copper weight on all layers
- Nonconductive filled Via-In-Pad used
- High performance FR4 material with 180°C glass transition temperature
- Flexible layout for user installed connection points:
- Standard Keystone test points
- SMA/SMB connector
- 2-pin headers
- Integrated current loop resistance can be measured directly on the evaluation board after test point installation; voltage drop can be measured for approximating power loss in the package.
Supported Products:
Content
- ACSEVB-LX8 evaluation board
- NOTE: It is up to the user to assemble the board with the desired current sensor and supporting circuitry. This board does not come populated with an Allegro current sensor or other components.
- Recommended supporting circuitry for all compatible current sensors are listed in the Supporting Circuitry section of the user’s guide.
