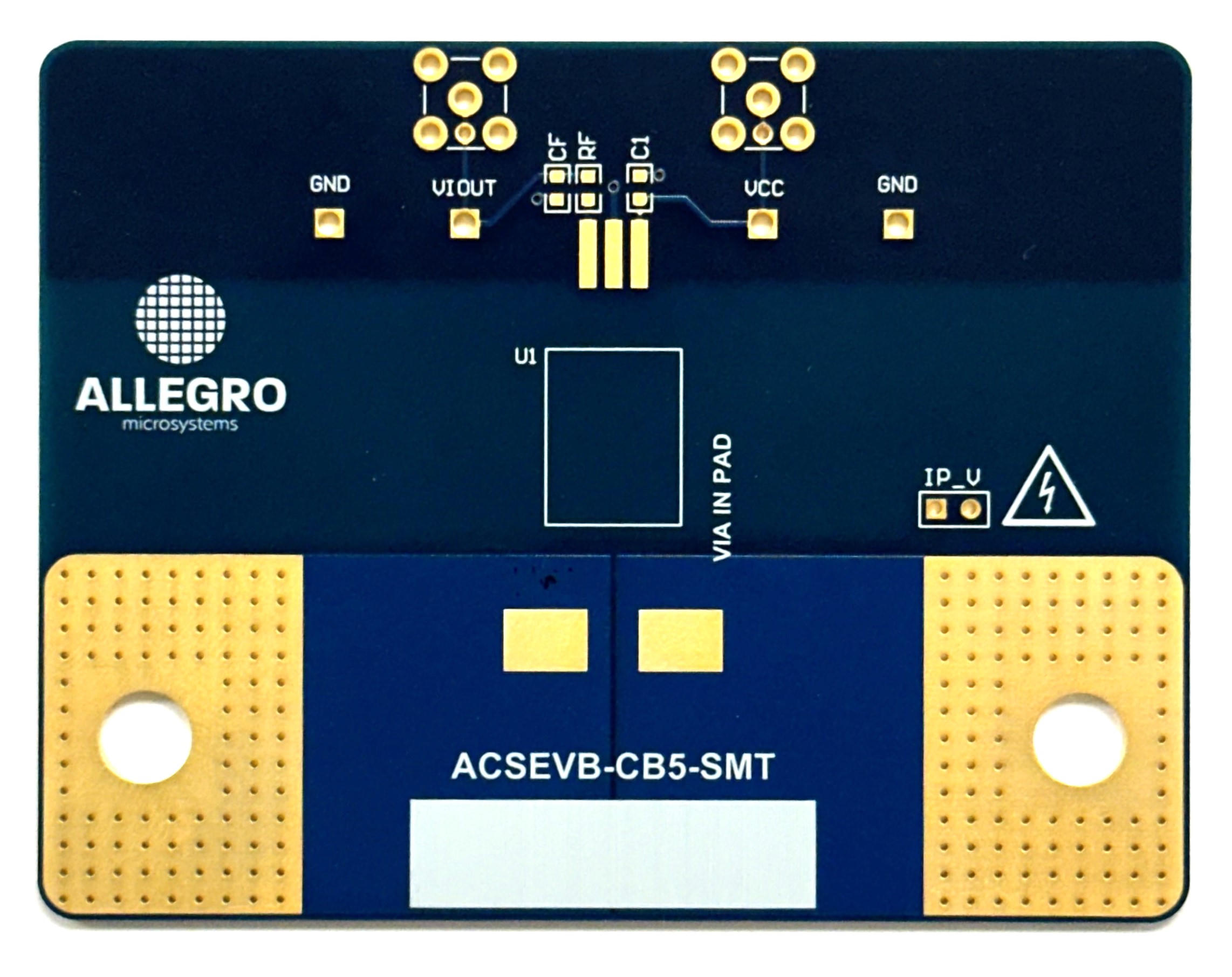

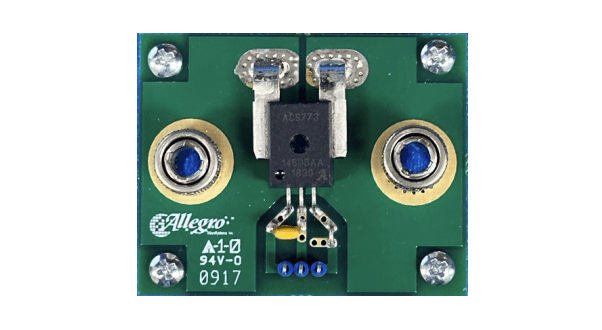

This bare evaluation board offers a method for evaluating Allegro current sensors in a lab environment. This CB package current sensor evaluation board (ACSEVB-CB5-SMT) is intended for use with any Allegro Hall-based or TMR-based current sensor that is in the SMT leadform, CB-5 package.
Product Details
Product Details
Top Features
- Enhanced thermal performance
- 6-layer PCB with 2 oz copper weight on all layers
- Nonconductive-filled via-in-pad
- High-performance FR4 material with 180°C glass transition temperature
- Flexible layout for user installed connection points
- Standard Keystone test points
- SMA/SMB connector
- 2-pin headers
- Integrated current loop resistance can be measured directly on the evaluation board after test point installation; voltage drop can be measured for approximating power loss in the package.
Supported Products:
Content
- NOTE: It is up to the user to assemble the board with the desired current sensor and supporting circuitry. This board does not come populated with an Allegro current sensor or other components.
- Recommended supporting circuitry for all compatible current sensor are listed in the "Using the Evaluation Board" section below.
