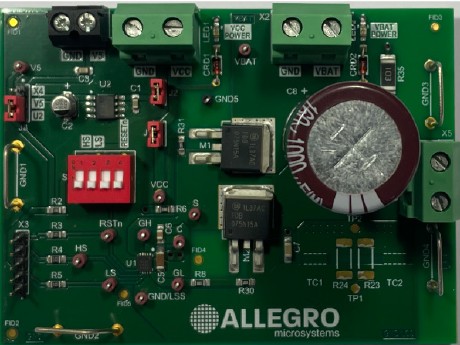

APEK89500GEJ-01-T Evaluation Board

A89500 100V Half-Bridge MOSFET Driver for High-Power Inductive Loads

This board provides the basic components required to use the A89500 to drive a motor. The motor can be controlled via an externally supplied PWM signal input on the logic input terminals.

Top Features

内含产品

  • 2-layer board with 2 oz. copper and high temp FR4
  • 10-lead DFN A89500GEJTR-T gate driver
  • 2× fast switching, low-RDS(ON) MOSFETs in half-bridge configuration
  • 5 V on-board voltage regulator
  • High-current 3-way connector for motor connection
  • High-current 2-way connector for supply connection
  • 4-position DIP switch for manual control of logic inputs

Supported Products:

  • 裸印刷电路板,无填充组件
    • 注意:用户可以自行组装带有所需电流传感器 IC 的电路板。此板不附带 Allegro 电流传感器。
  • 所有兼容电流传感器的推荐物料清单 (BOM) 可以在相应用户指南的“物料清单”部分找到
