APEK49502KLP-03-T Evaluation Board

AMT49502 80V Automotive Half-Bridge MOSFET Driver with ASIL Compliance and Diagnostics

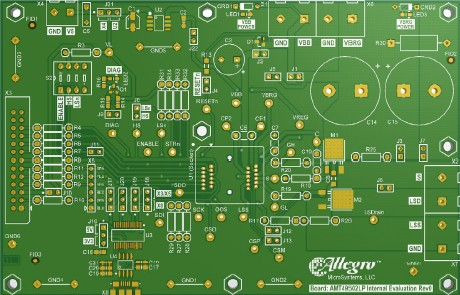

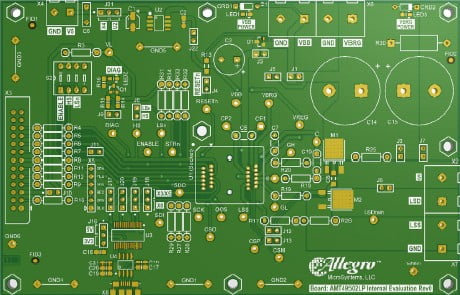

The AMT49502 evaluation board is designed to aid system designers with evaluating the operation and performance of the Allegro AMT49502 48 V safety automotive, half-bridge MOSFET driver. This application note describes the components of the AMT49502 evaluation board and explains how it can be used to achieve typical operation. To simplify understanding, components of the evaluation board are categorized into different topics.

Top Features

内含产品

  • Evaluation of the operation and performance of AMT49502

Supported Products:

  • 裸印刷电路板,无填充组件
    • 注意:用户可以自行组装带有所需电流传感器 IC 的电路板。此板不附带 Allegro 电流传感器。
  • 所有兼容电流传感器的推荐物料清单 (BOM) 可以在相应用户指南的“物料清单”部分找到
