APEK81800KES-01-T Evaluation Board

ARG81800 40V, 1A Synchronous Buck Regulator with Ultralow Quiescent Current

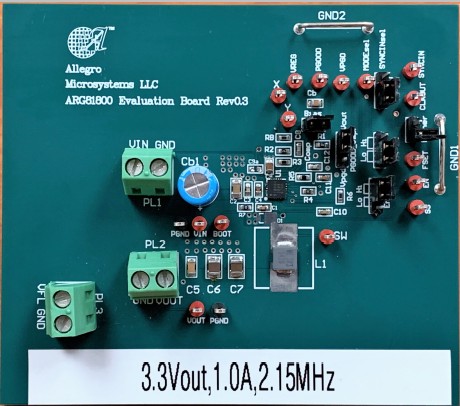

The ARG81800 evaluation board is designed to aid system designers in evaluating the operation and performance of the ARG81800 synchronous buck regulator. The ARG81800 has many features that make it well suited for a wide array of applications. To fully understand these features the ARG81800 datasheet should be used in conjunction with this user guide.

Top Features

内含产品

  • ARG81800 synchronous buck converter
  • User-selectable PWM vs. Low Power mode
  • Jumper to optionally connect VOUT to BIAS pin for improved efficiency
  • Input to optionally synchronize power converter switching
  • Jumpers to configure SYNCIN and CLKOUT pins for desired switch dither and clock output behavior
  • VFL input terminal for optional additional input filter on VIN

Supported Products:

  • 裸印刷电路板,无填充组件
    • 注意:用户可以自行组装带有所需电流传感器 IC 的电路板。此板不附带 Allegro 电流传感器。
  • 所有兼容电流传感器的推荐物料清单 (BOM) 可以在相应用户指南的“物料清单”部分找到
