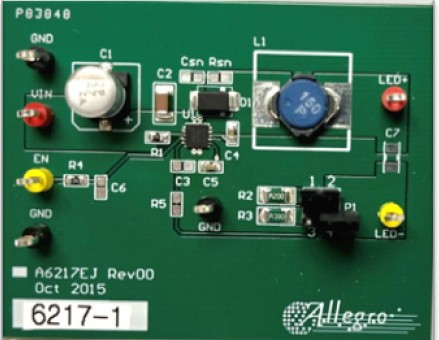

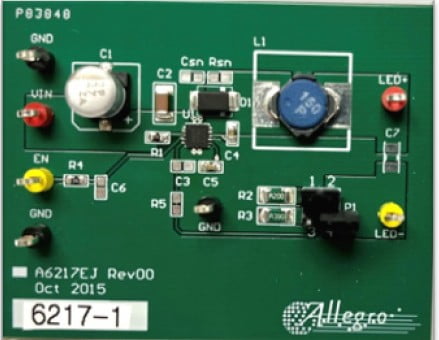

APEK6217KEJ-01-MH-0 Evaluation Board

A6217 Automotive Constant-Current Buck LED Drivers with PWM Dimming

This evaluation board is used to demonstrate the operation and performance of the Allegro A6217 constant-current buck regulator LED driver.

Top Features

内含产品

  • A6217 constant-current buck LED driverm
  • User-selectable LED output current up to 1.5 A
  • LED dimming control enabled via an external PWM signal
  • Test point for connection of external logic sources for enable/disable signal or PWM dimming signal
  • Test points for connection of an external LED string

Supported Products:

  • 裸印刷电路板,无填充组件
    • 注意:用户可以自行组装带有所需电流传感器 IC 的电路板。此板不附带 Allegro 电流传感器。
  • 所有兼容电流传感器的推荐物料清单 (BOM) 可以在相应用户指南的“物料清单”部分找到
