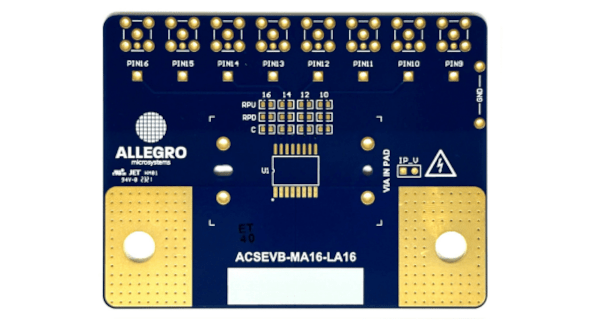

This bare evaluation board offers a method for evaluating Allegro current sensors in a lab environment. This MA/LA current sensor evaluation board (ACSEVB-MA16-LA16, TED-0004111) is intended for use with any MA-16 or LA-16 package (16-pin SOIC-W) Allegro Hall-based or TMR based current sensors.
Product Details
Product Details
Top Features
- Enhanced thermal performance:
- 6-layer PCB with 2 oz copper weight on all layers
- Nonconductive filled Via-In-Pad used
- High performance FR4 material with 180°C glass transition temperature
- Flexible layout for user installed connection points
- Standard Keystone test points
- SMA/SMB connector
- 2-pin headers
- Integrated current loop resistance can be measured directly on the evaluation board after test point installation; voltage drop can be measured for approximating power loss in the package.
Supported Products:
- High bandwidth Hall-effect and TMR current sensors: ACS7100, ACS37035
- High accuracy Hall-effect current sensors: ACS37002, ACS71010, ACS37017
- Other TMR current sensors: CT4032,CT432, CT433
- Other Hall-effect current sensors: ACS720, ACS724, ACS725
- Not recommended for new design (NND) current sensors: ACS710, ACS717, ACS718, ACS722, ACS723, ACS732, ACS733, ACS71020, CT430, CT431
Content
- NOTE: It is up to the user to assemble the board with the desired current sensor and supporting circuitry. This board does not come populated with an Allegro current sensor or other components.
- Recommended supporting circuitry for all compatible current sensors are listed in the Supporting Circuitry section of the user’s guide.
