The CT310 offers high-accuracy XtremeSense TMR angle sensing with low error (less than 0.6°) after one-time compensation. Its dual full-bridge design and differential outputs provide robust performance and redundancy.
Product Details
Product Details
Top Features

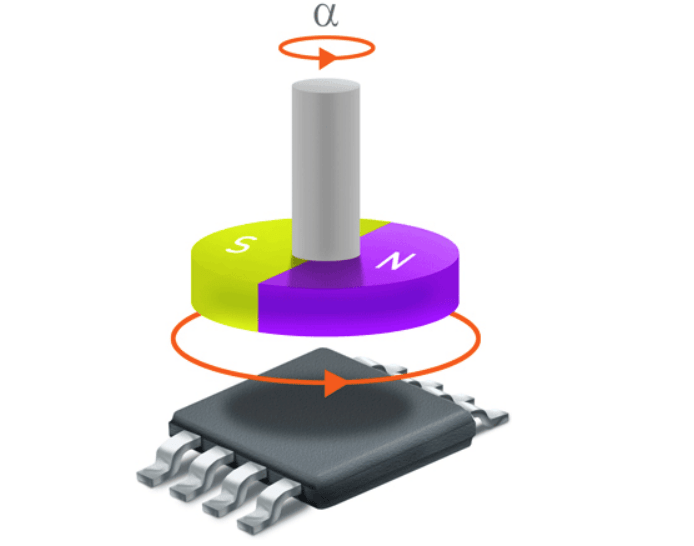

- Contactless Angle Measurement from 0° to 360°
- Angular Error less than 0.30° (After Compensation)

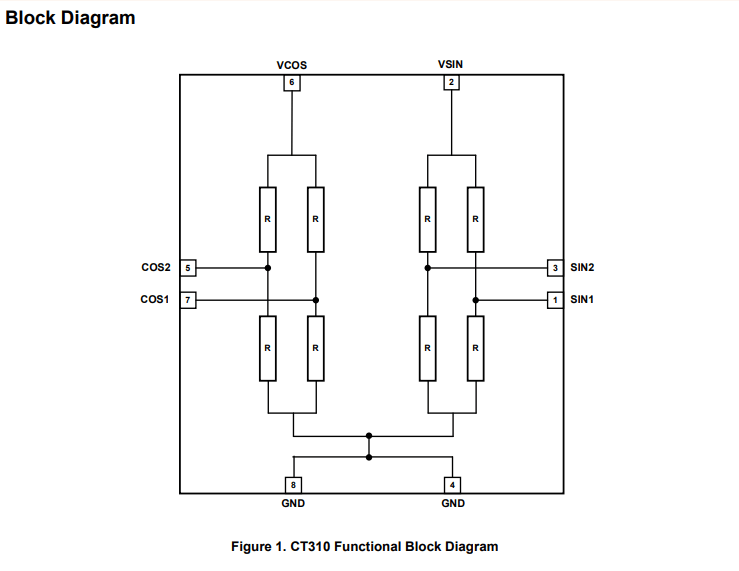

- Dual Full-Bridge Resistor Network
- Operating Magnetic Field: 25 mT to 90 mT
- Stable Magnetic Performance Over Temperature
- Differential Outputs for SIN and COS Axes
- Wide Operating Temperature Range
- Industrial: -40°C to +85°C
- Extended Industrial: -40°C to +125°C
- Full: -40°C to +150°C
- Package Options:
- 8-lead TSSOP
- 8-lead DFN, 2.00 x 2.00 x 0.45 mm
- KGD (Known Good Die) in Wafer Form
