Low Noise, Standalone, Coreless and Contactless Current Sensor with Overcurrent and Overtemperature Detection
ACS37610-1
The Allegro ACS37610/1 current sensors are a game changer for high current sensing applications, eliminating the need for bulky external cores or shields. They are designed to accurately measure both AC and DC current flowing through busbars or PCBs, making them ideal for a wide range of applications. The ACS37611 provides an improved sensitivity error over temperature. The SIP package simplifies through-busbar assembly and offers great immunity to displacement errors.
Product Details
Product Details
Top Features

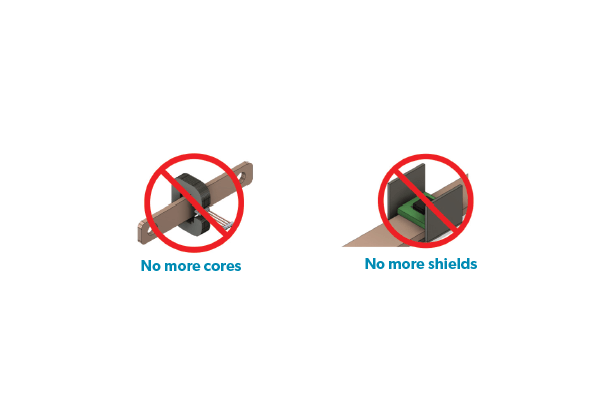

- Differential Hall-based sensing provides immunity to stray magnetic fields while eliminating large and expensive concentrating cores and shields.
- Quick overcurrent and overtemperature fault output ideal for safety critical applications (TSSOP package versions only)
- Wide current sensing range (100 A to >10,000 A) with single busbar or PCB design
- High customer programmability and lower noise provide high accuracy (<1% typ)
- High isolation and reliability is achieved with up to 250 kHz sensor bandwidth (210kHz for the SIP package version)

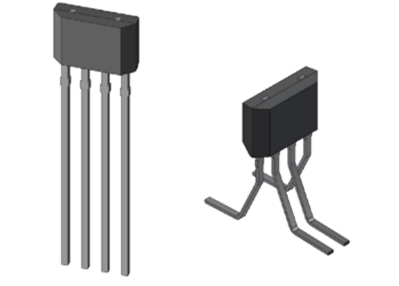

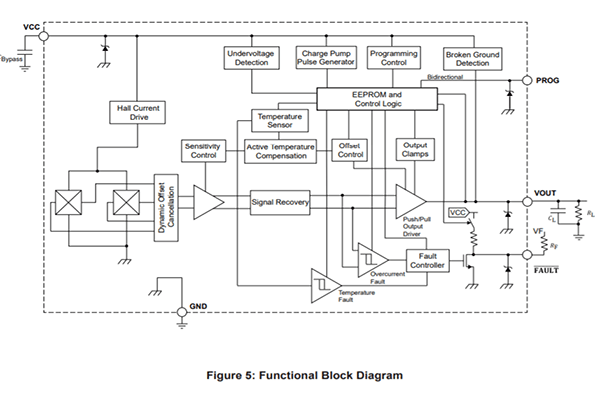

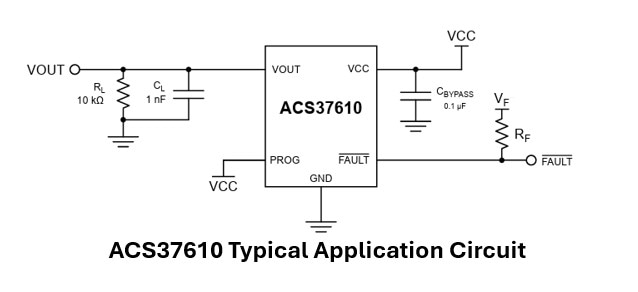

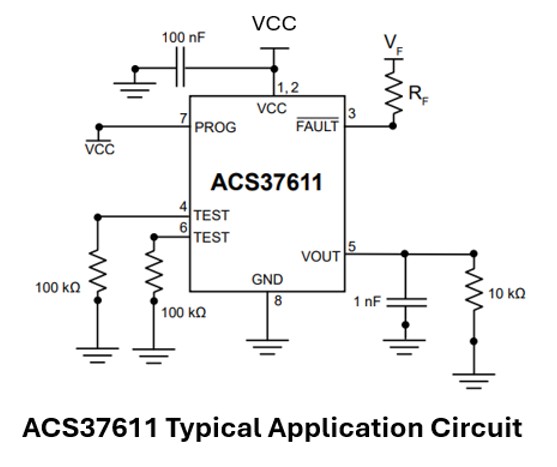

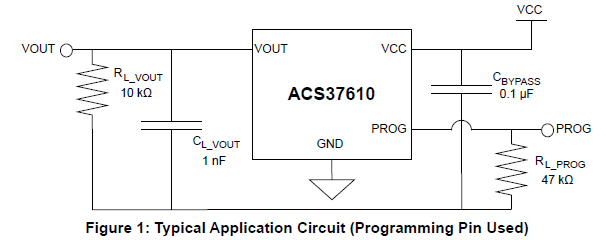

- SIP package option simplifies assembly and reduces displacement errors
Part Number Specifications and Availability
ACS37610 Coreless Current Sensor Product Overview
Want to learn more about the ACS37610 coreless current sensor from Allegro? Check out this video for a quick 1-minute introduction.
0:00
Design Tools
ECAD FILE
ACS37610-1
Calculator
Busbar Design for Coreless DC Current Sensors
Simulation Tool
Busbar Notch Field Simulation for AC and DC Coreless Current Sensor
Simulation Tool
Current Sensor Error and Resolution
Simulation Tool
PCB Notch Design for Coreless DC Current Sensor
Software
Software Portal
SPICE Model
ACS LTspice Library
Third Party Tool
Suncall Magnetic Sensor Module featuring the ACS37610
Technical Documentation
Application Note
PCB Ground Plane Optimization for Coreless Current Sensor Applications
Application Note
Dual-Bridge Design Guidelines for ACS37610S
Application Note
Q-Rift PCB Design for ACS37610 Differential Hall Coreless Sensor to Minimize Position Tolerance Error and Improve Thermal Handling
Application Note
Crosstalk Error Estimation and Reduction Through Busbar Design for the ACS37610 Coreless Current Sensor
Application Note
ACS37610 Busbar Geometry and Design Techniques for Coreless Differential Current Sensors
Application Note
Notched Busbar Design Guidelines For Coreless ACS37610 Differential Current Sensor
Application Note
Overcurrent Fault Detection Using ACS37610 Coreless Current Sensor
Application Note
Transient Current Behavior in Applications using the Allegro Coreless ACS37610 Differential Current Sensor
Application Note
Glossary of Isolation-Related Terms for Integrated Current Sensors
Brochure
Brochure: Battery Management Systems
Brochure
Brochure: Allegro Coreless Current Sensing
Guide
ACS37610 Evaluation Board User Guide
Guide
