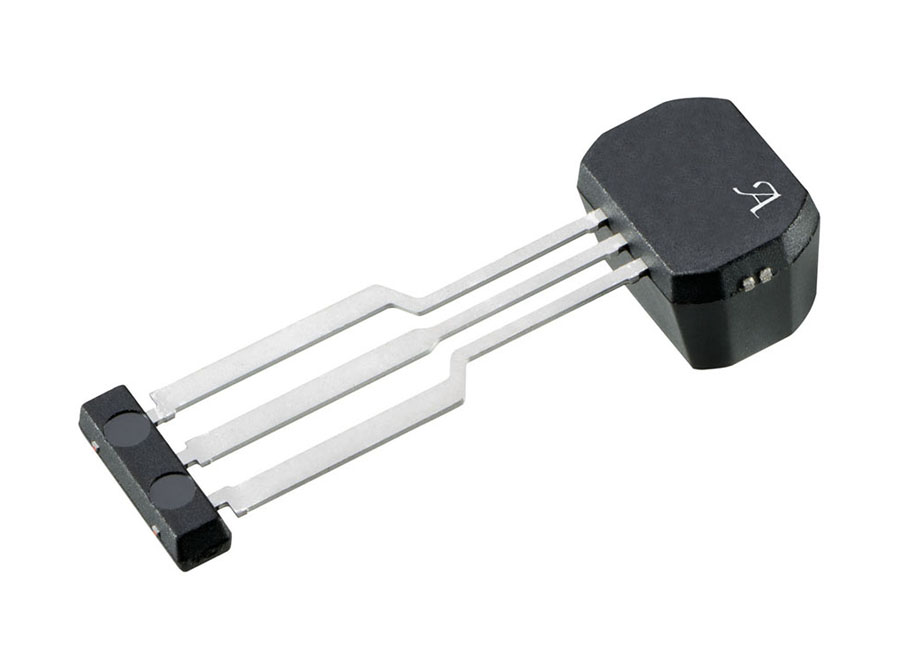

Crankshaft Position Sensor IC with Speed and Direction Output
ATS694
Markets Served
The ATS694 simplifies crankshaft sensing with integrated speed and direction detection, advanced calibration techniques, and digital signal tracking for accurate and reliable performance.
Product Details
Product Details
Top Features
- Digital output with speed and direction information provides ferromagnetic target position information
- Electrical offset compensation through chopper stabilization
- Dual zero-crossing with internal hysteresis
- Highly repeatable across operating temperature range
- Automatic Gain Control and Automatic Offset Adjust circuits result in air gap independent switch points
- Robust test coverage capability using Scan Path and IDDQ measurement
Target Application
- Crankshaft
- 2W-Powertrain
- Heavy Vehicles-xEV Powertrain
- HV-Powertrain
- Recreational Vehicles
