Magnetic Speed Sensors
Crankshaft Position Sensor IC with Speed and Direction Output and Programmable Thresholds
ATS696
The ATS696 provides precise crankshaft position sensing with speed and direction detection, offering programmable thresholds and EEPROM customization for optimized performance in specific applications.
Product Details
Product Details
Top Features

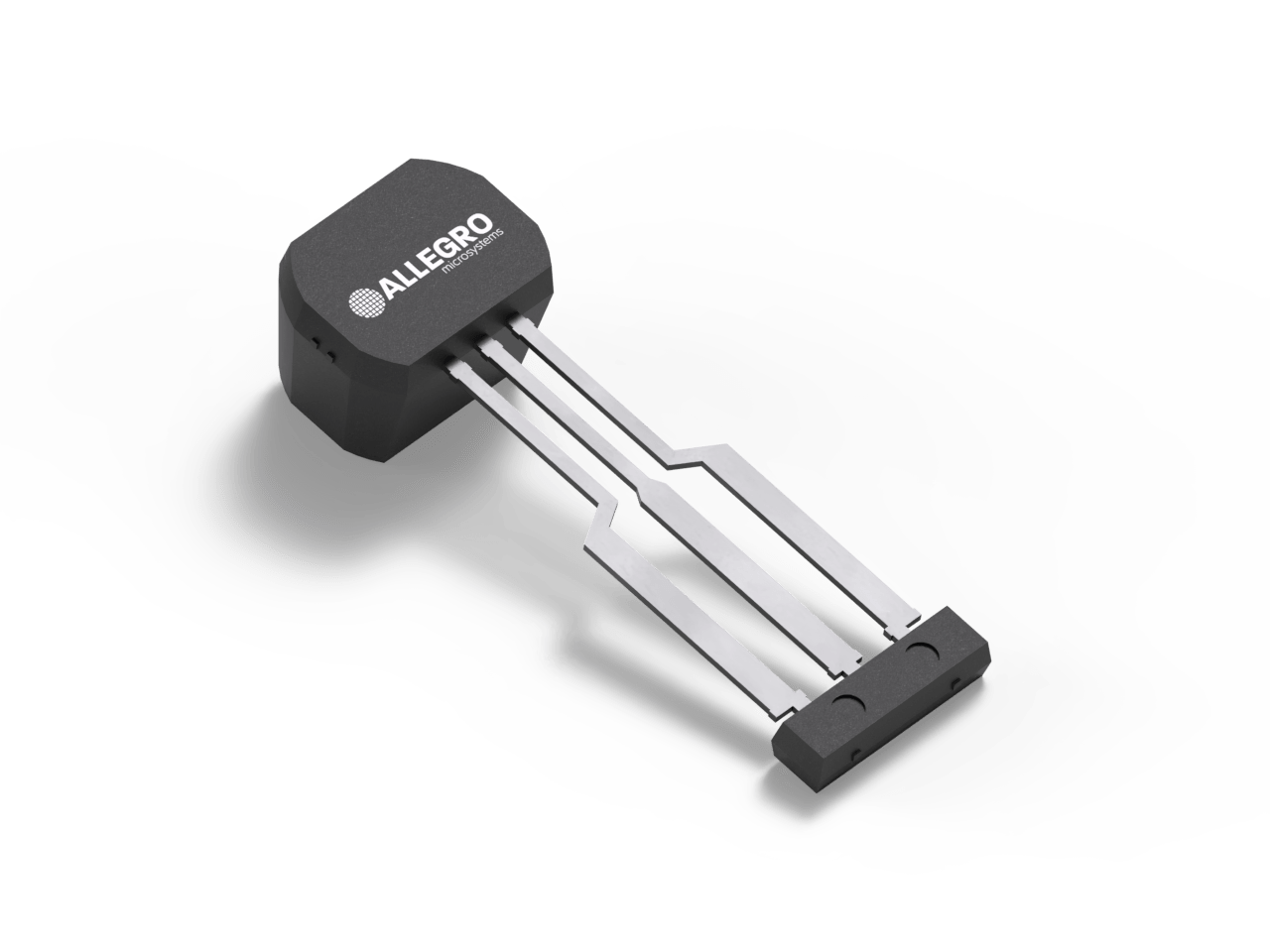

- Allegro SM package with integrated EMC components provides robustness to most automotive EMC requirements
- Optimized robustness against magnetic offset variation
- Small signal lockout for immunity against vibration
- True zero-speed operation
- Air gap independent switchpoints
- Large operating air gaps achieved through use of gain adjust and offset adjust circuitry
- Customer-programmable switchpoints for mechanical tolerances compensation
- EEPROM programming for performance optimization and production traceability
- Differential sensing provides stray field immunity
- Available in K, KH or UC style packages to allow for customer designed magnetic profiles
Target Application
- Crankshaft
- 2W-xEV Power
