3 次元磁気ポジション センサー
Allegroの3DMAG™多軸センサは、浮遊磁場を排除しつつ3次元（3D）空間における複雑な直線運動および回転運動を捉えるように設計されており、機械設計の柔軟性と精度をさらに向上させます。
Featured Products
A31315
3D Hall-Effect Sensor for Rotary and Linear Position Measurement
A31301
Low Power 3D Magnetic Position Sensor with SPI & I²C Interfaces and Angle Output
A31316
3D PCB-less Hall-Effect Sensor for Rotary and Linear Measurement

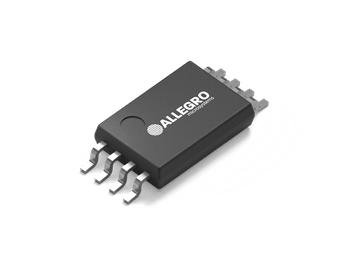

A31331
Automotive grade 3D magnetic position sensor with onboard angle, low power functionality, and SPI and I2C outputs
3 次元磁気ポジション センサー IC 選択ガイド
設計リソース
Video
Precision in Three Dimensions: Optimizing 3D Hall-Effect Sensing for Rotation and Translation New
Join Daniel Bogdanoff and Allegro microsystem's Nick Czarnecki as they explore Allegro Microsystems' 3D Hall-effect sensing tech for rotation & translation—how it works, real-world applications in ADAS, industrial automation, and more.
Application Note
Vertical Hall Technology Enables Effective Tamper Detection
A recent breakthrough in Hall-effect sensing has enabled the creation of omnidirectional magnetic sensor ICs that match all of the requirements for tamper detection.
Application Note
Chopper-Stabilized Amplifiers With Track-and-Hold Signal Demodulator
The conventional signal demodulator of a chopper amplifier can be substituted by track-and-hold (T/H) and averaging functions. This arrangement provides offset cancellation without requiring low-pass filters and can ignore the residual offset generated by input spikes.
Application Note
Ring Magnet Speed Sensing for Electronic Power Steering
Proper control of Electric Power Steering (EPS) systems requires both speed and direction information from the steering input shaft. This control will typically come from both high-resolution speed information and fairly coarse position information.
Application Note
Position and Level Sensing Using Hall-Effect Sensing Technology
This paper introduces Hall-effect technology, then explores how it has been applied, in particular, differentiating between the primary types of Hall sensor ICs and the highly differentiated range of sensing behaviors they can support.
Application Note
Analysis of a Hall-Effect System With Two Linear Sensor ICs for 30 mm Displacement
In this application note we are investigating how to extend the displacement range for linear detection by using two sensor ICs, using typical Allegro™ MicroSystems devices as examples.
Application Note
Guidelines for Using Allegro Angular Sensors
Many applications in different industries, such as in industrial automation and automotive sensors and actuators, require monitoring the angle of a rotating shaft either in an on-axis or off-axis arrangement. This application note is dedicated to a review of on-axis magnetic applications.
Application Note
Bipolar Switch Hall-Effect ICs
Bipolar sensor ICs are designed to be sensitive switches. (Note that the term "bipolar" refers to magnetic polarities, and is not related to bipolar semiconductor chip structures.) Hall measurement, bipolar switching, hall switch.
Application Note
Advanced Power Management Using the ALS31300 and ALS31313 3D Hall-Effect Sensor ICs with I2C Output
AN296144 - This application note discusses the unique and advanced low power modes available on the ALS31300 and ALS31313 3D Linear Hall-Effect Sensor ICs with I2C output available from Allegro MicroSystems.
Application Note
Omnipolar Switch Hall-Effect IC Basics
There are four general categories of Hall-effect IC devices that provide a digital output: unipolar switches, bipolar switches, omnipolar switches, and latches. Omnipolar switches are described in this application note.
Application Note
Unipolar Hall-Effect Sensor IC Basics
There are four general categories of Hall-effect IC devices that provide a digital output: unipolar switches, bipolar switches, omnipolar switches, and latches. Unipolar switches are described in this application note.
Application Note
3D Linear or 2D Angle Sensing with the ALS31300 and ALS31313 Hall-Effect ICs
AN296140 - This application note describes the use of the ALS31300 and ALS31313 3D Linear Hall-Effect Sensor integrated circuits (ICs) from Allegro MicroSystems for 3D linear sensing and 2D angle sensing applications.
Application Note
Short-Stroke Rotary Application of the A31315
AN296204 - This guide is intended to assist you in applying the A31315 Samples Programming Software to your short-stroke rotary application, such as a throttle-body, which uses the A31315 Advanced Linear Sensor and a target motion of 0° to 90°.
Application Note
How to Determine and Remove Systematic Channel Errors Using 3D Linear Angle Sensors
AN296201-This application note intends to describe the channel level errors and their impact on reported angle in 3D linear angle sensors when using the device in an on-axis rotary application. This document will also describe how to compensate for these errors using internal customer settings.
Application Note
A31315 Slide-By Introductory Application Guide
AN296189 - The A31315 is a multi-axis Halleffect sensor with advanced integrated signal processing capabilities that simplifies the numerous design challenges that the systems designer faces.
