Allegro Current Sensor Evaluation Boards

Allegro Current Sensor Evaluation Boards offer a convenient method for quickly evaluating Allegro Current Sensors in a lab environment without needing a custom circuit board. These evaluation board are intended for use with a user-populated Allegro Current Sensor IC.

Product Details

Top Features

Please add Product Features

Bare Board Selection Table

Bare Evaluation Board Buy Now Compatible Package(s) Compatible Current Sensors User Guide PCB Information

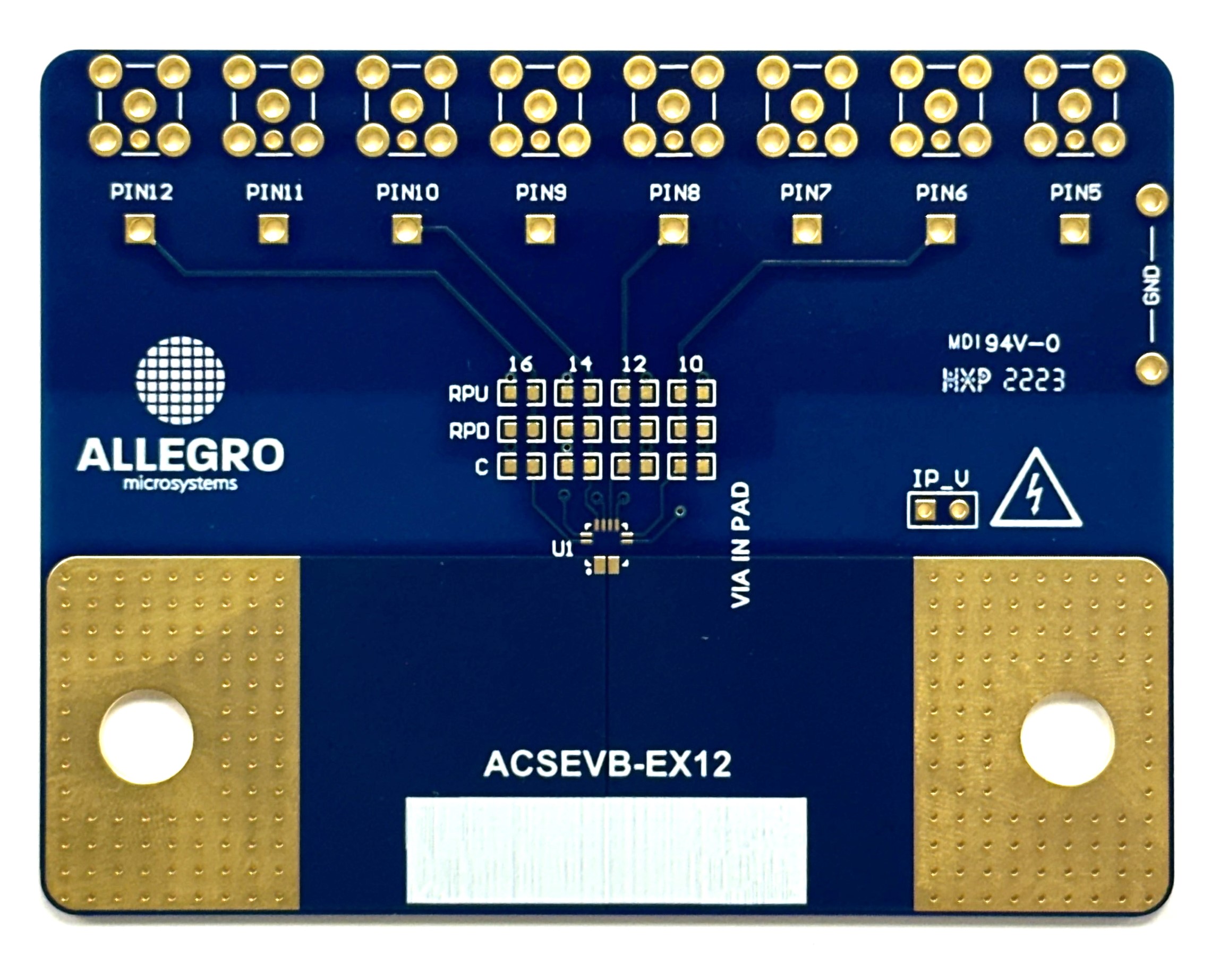

Evaluation Board NameACSEVB-EX12 Buy NowBuy Now PackageEX (12-Contact QFN with Wettable Flank) Compatible Current SensorsACS71240, ACS711 User GuideEX-Generic-Eval-Board-User-Guide PCB InformationGerber Files and Fab Info (Zip folder)
 Evaluation Board Schematic (PDF)

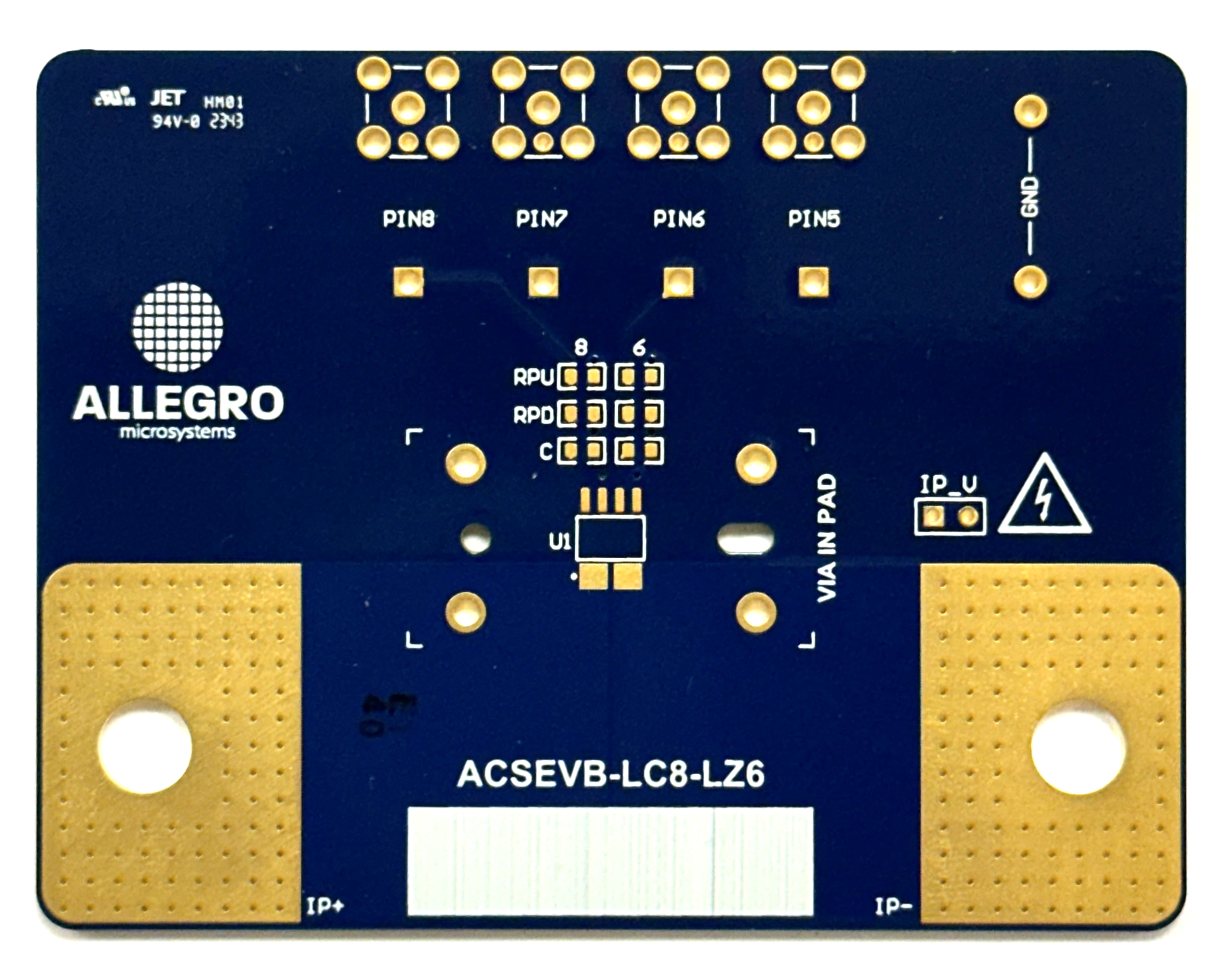

Evaluation Board NameACSEVB-LC8-LZ6 Buy NowBuy Now PackageLC (SOIC-8)/LZ (Custom 6-Pin SOIC)  Compatible Current SensorsACS71240, ACS37030/ACS37032, ACS37010/ACS37012,  ACS730, ACS725, ACS724, ACS723, ACS722, ACS715, ACS714, ACS713, ACS712, ACS711, CT41x, CT42x User GuideLC-LZ-Evaluation-Board-User-Guide PCB InformationGerber Files and Fab Info (Zip folder)
Evaluation Board Schematic (PDF)


Evaluation Board NameACSEVB-LH5 Buy NowBuy Now PackageLH (SOT23-W 5) Compatible Current SensorsACS37041, ACS37042 User GuideLH Evaluation Board User Guide PCB InformationGerber Files and Fab Info (Zip folder)
Evaluation Board Schematic (PDF)

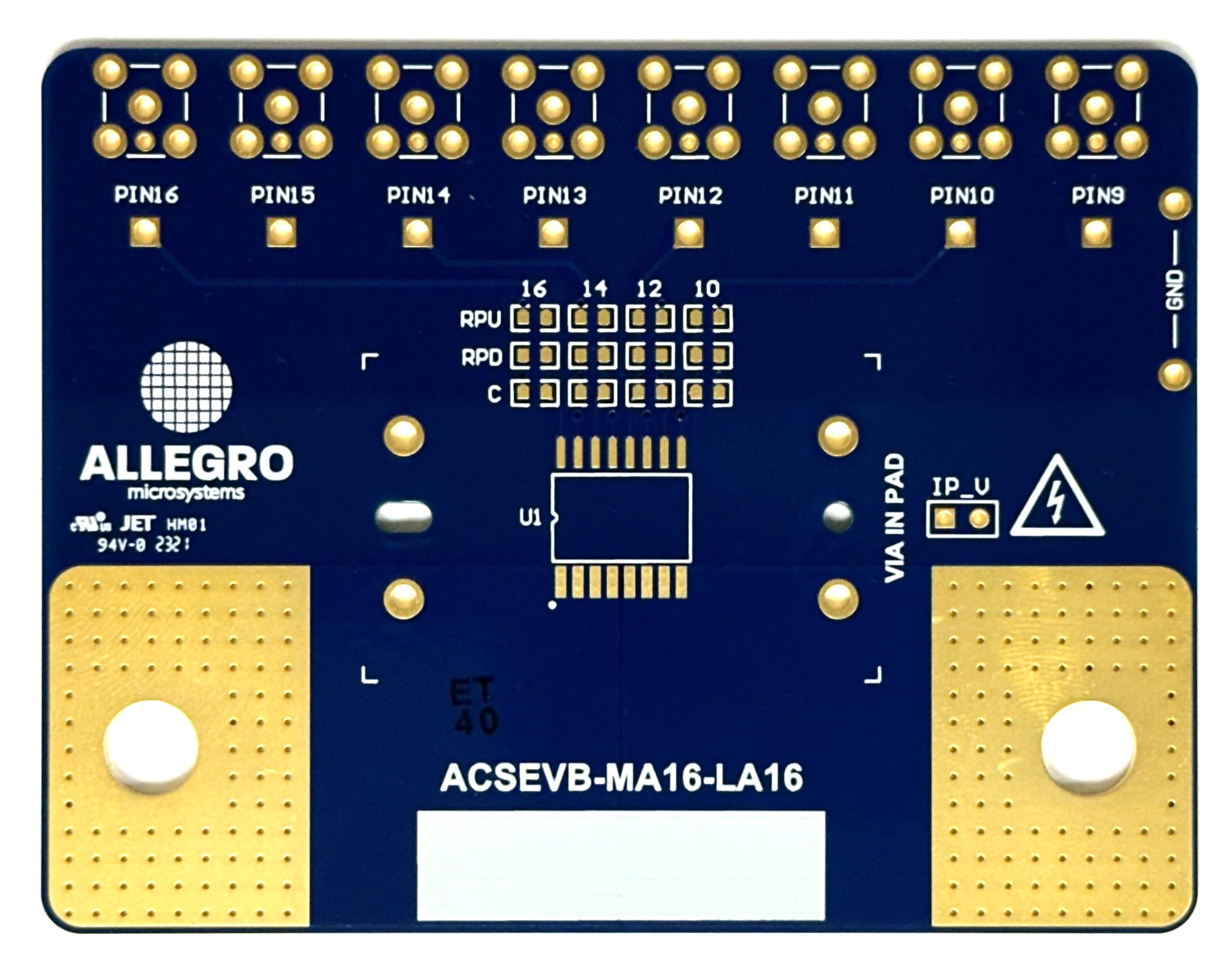

Evaluation Board NameACSEVB-MA16-LA16 Buy NowBuy Now PackageMA (SOICW-16)/LA (SOICW-16) Compatible Current SensorsACS37002, ACS733, ACS732, ACS720, ACS716, ACS710, ACS71020, ACS725, ACS724, ACS723, ACS722, ACS718, ACS717, CT430, CT431, CT432, CT433 User GuideMA-LA-Evaluation-Board-User-Guide PCB InformationGerber Files and Fab Info (Zip folder)
Evaluation Board Schematic (PDF)

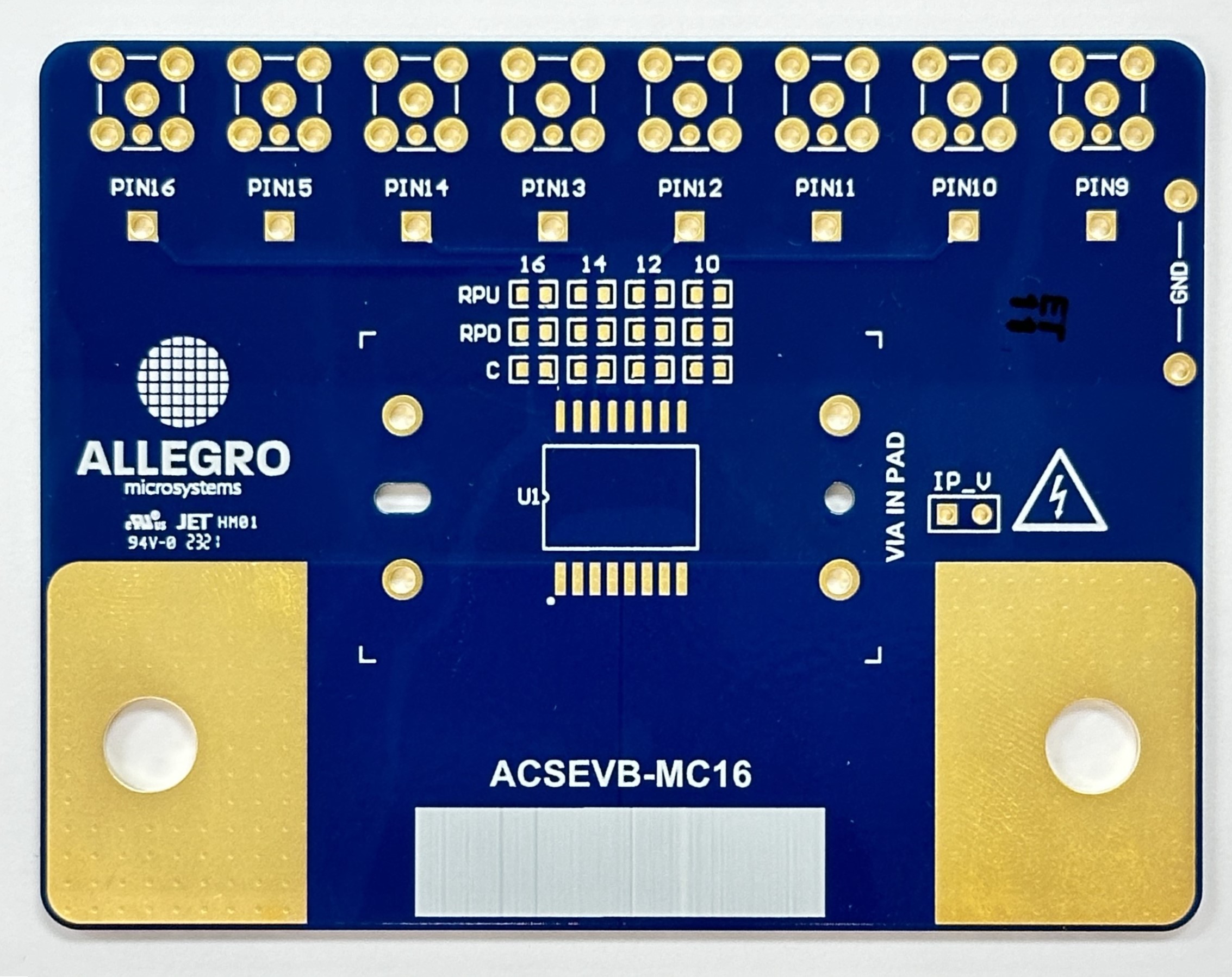

Evaluation Board NameACSEVB-MC16 Buy NowBuy Now PackageMC (SOICW-16) Compatible Current SensorsACS37002, ACS37003, ACS724, ACS725 User GuideMC-Evaluation-Board-User-Guide PCB InformationGerber Files and Fab Info (Zip folder)
Evaluation Board Schematic (PDF)


Evaluation Board NameACSEVB-CB5-SMT Buy NowBuy Now PackageCB (Custom 5-Pin Package, SMT Leadform) Compatible Current SensorsACS770, ACS772, ACS773 User GuideCB-Evaluation-Board-User-Guide PCB InformationGerber Files and Fab Info (Zip folder)
Evaluation Board Schematic (PDF)


Evaluation Board NameACSEVB-MZ6-MY6 Buy NowBuy Now PackageMZ-6/MY-6 packages  Compatible Current SensorsACS37030, ACS37220 User GuideMZ-MY-Evaluation-Board-User-Guide PCB InformationGerber Files and Fab Info (Zip folder)
Evaluation Board Schematic (PDF)
